Also started on the inlet, but this went all wrong.
When I had it ready it turns out the cab fits, but the throthlecable won't so I will need to design it better (think with an angular towards the right side)

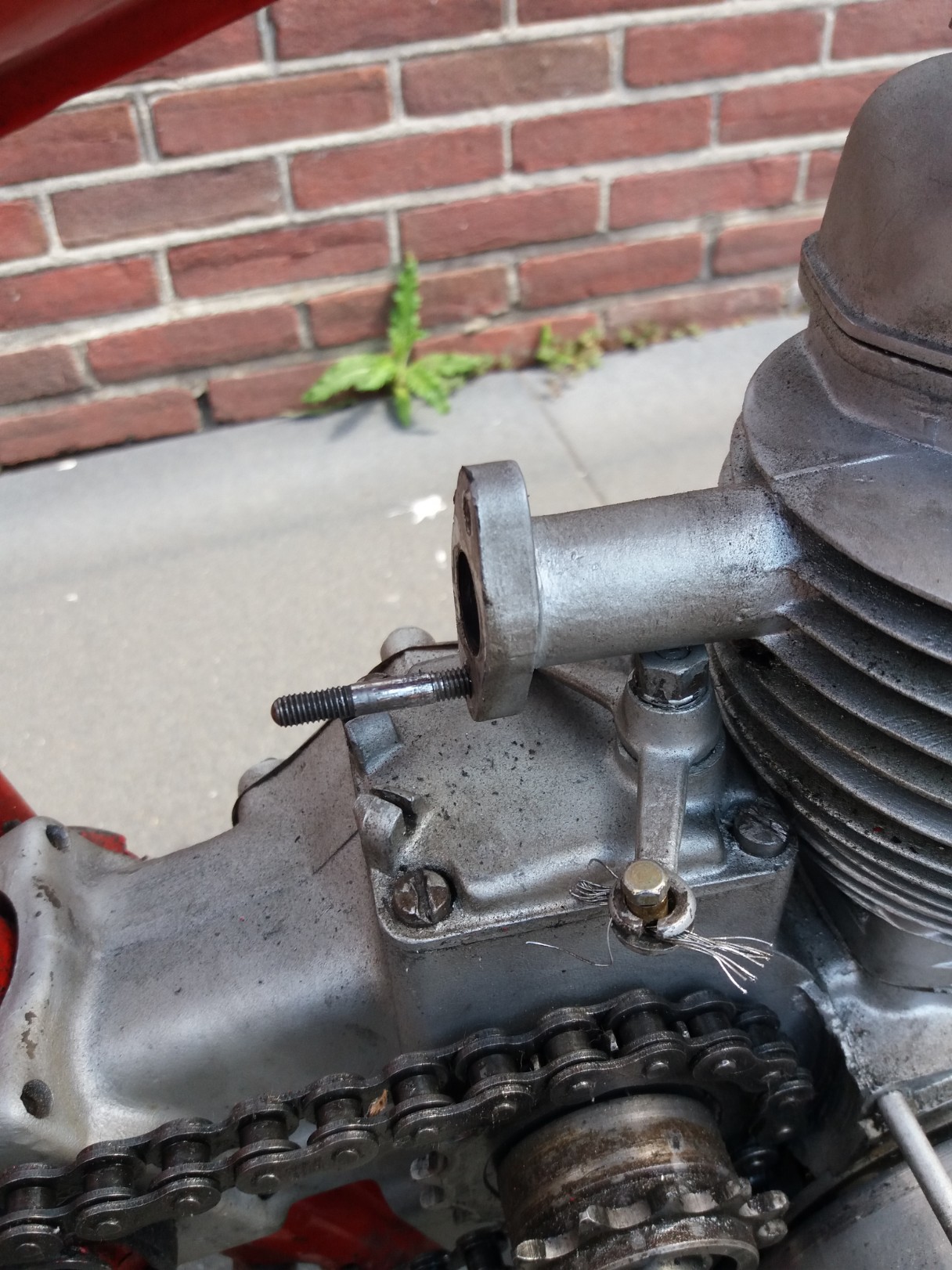

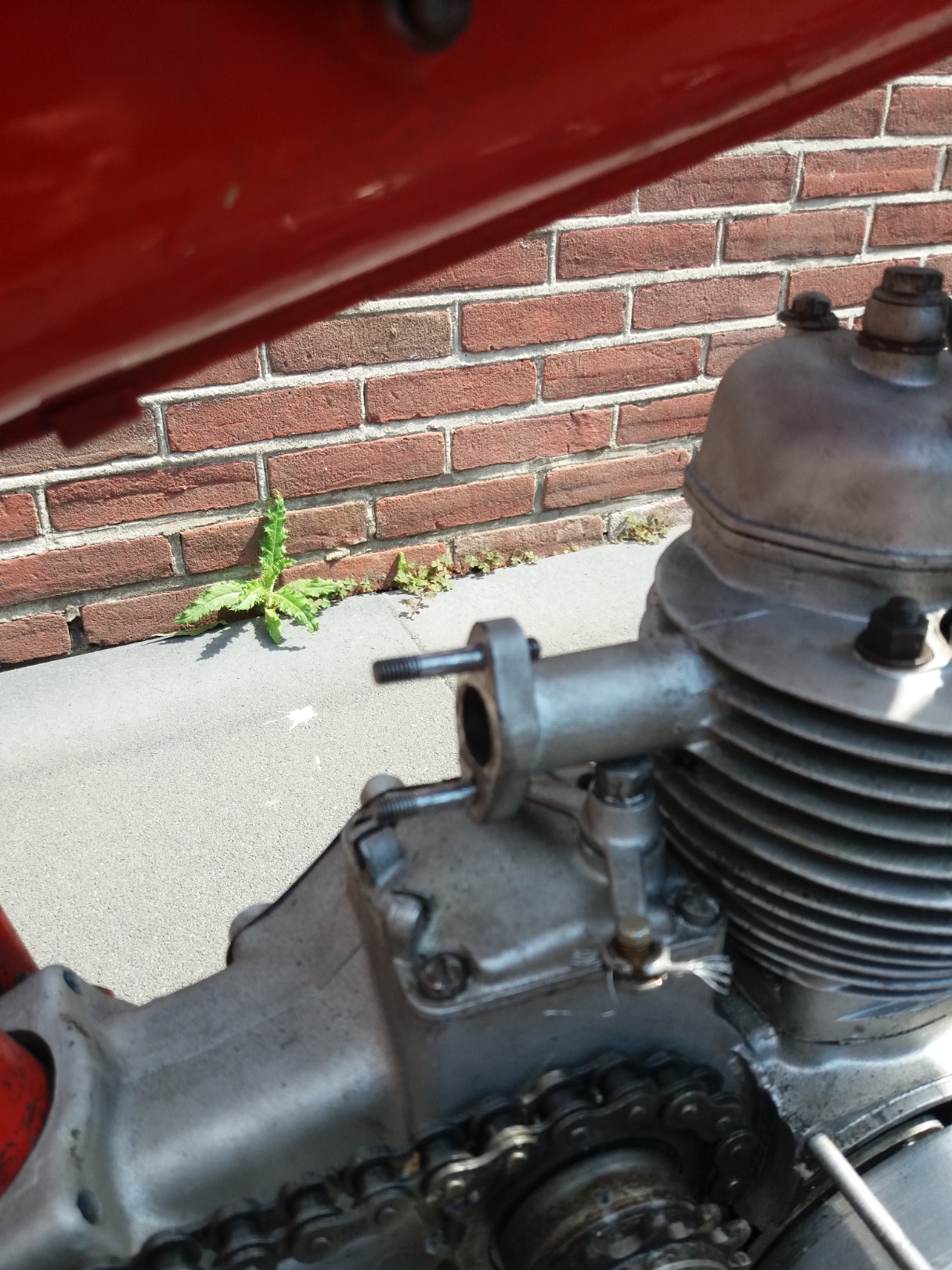

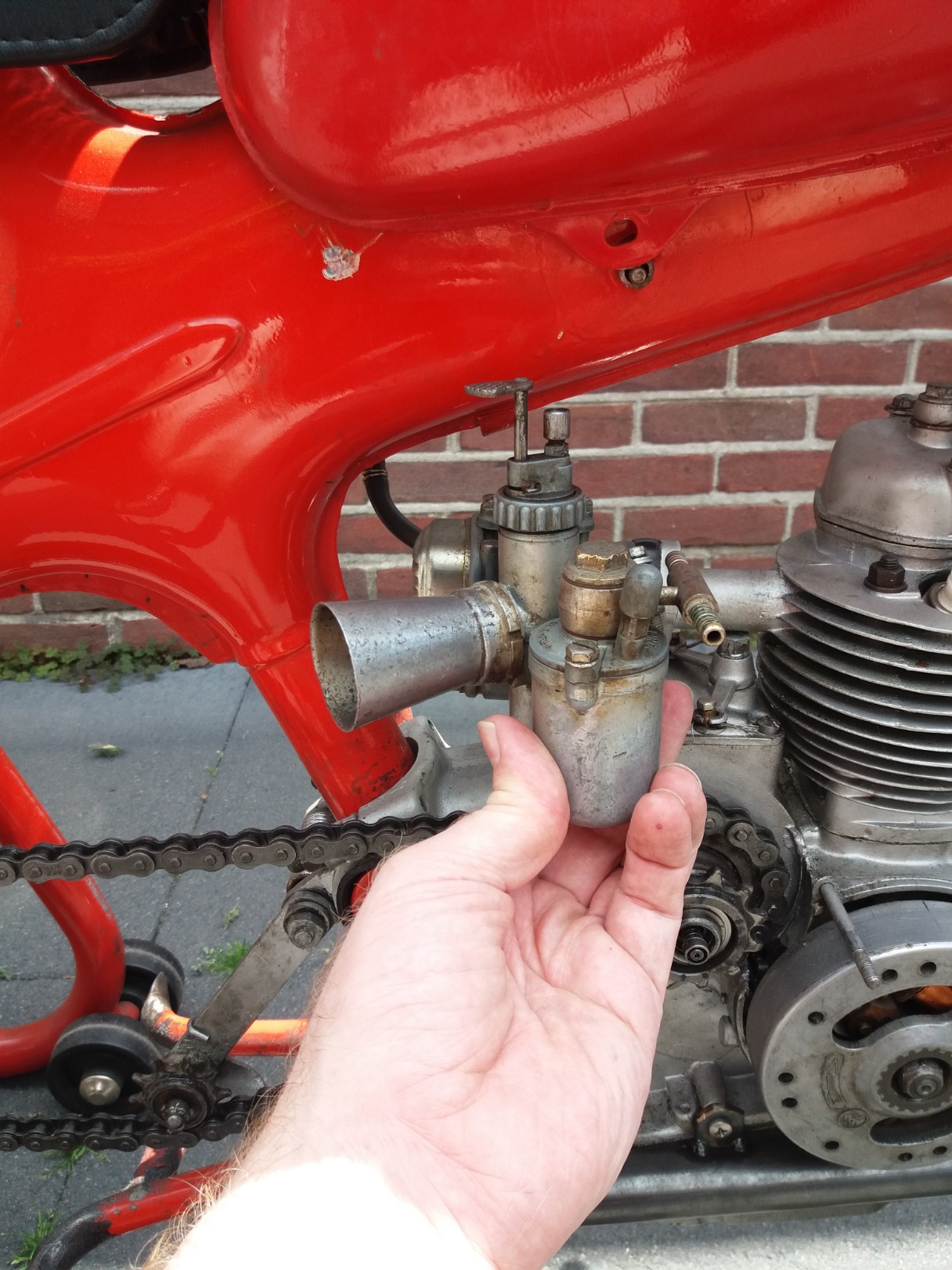

Roughly looking if it could fit.

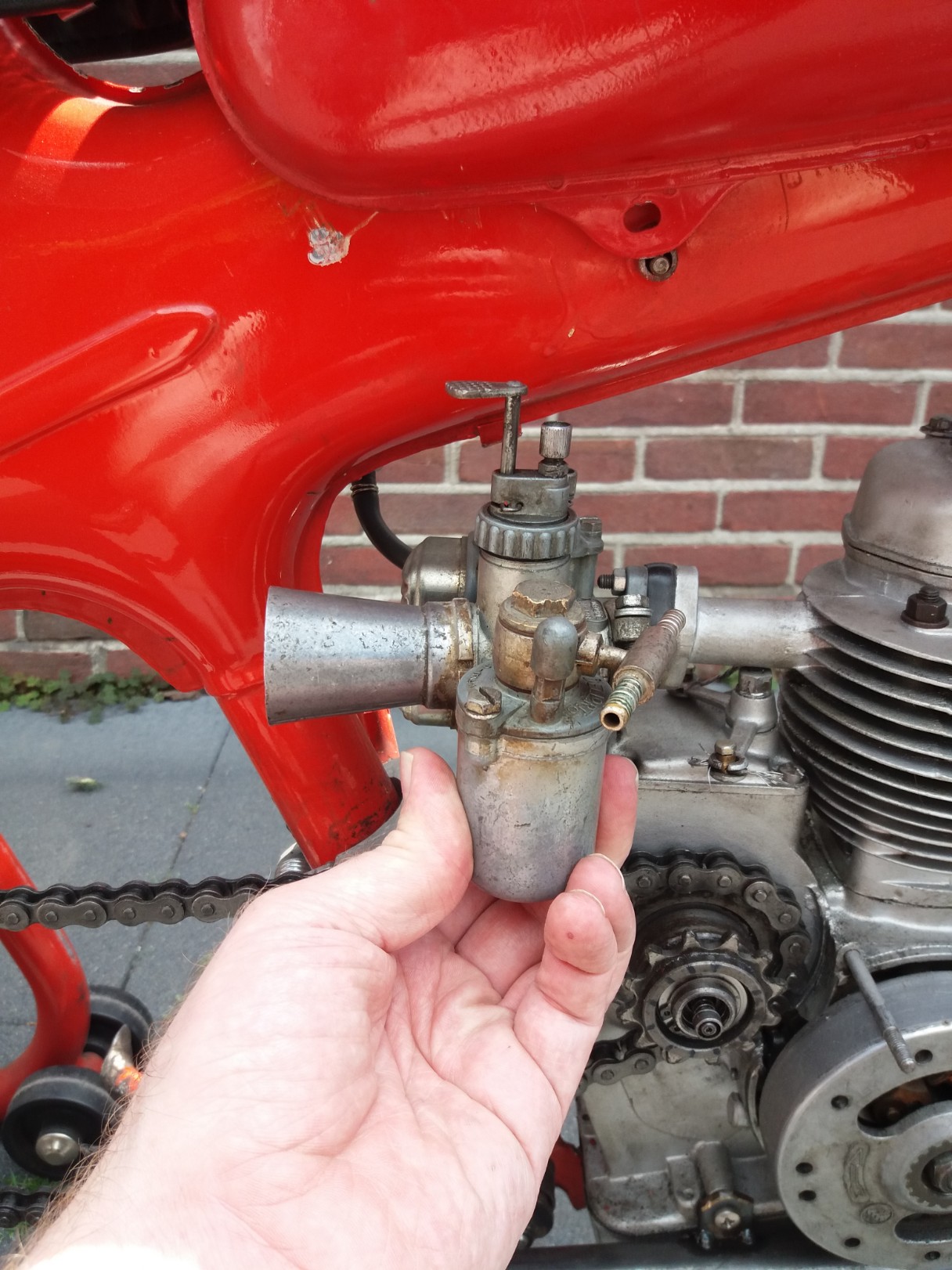

I should have picked this option, with an angle to the right.

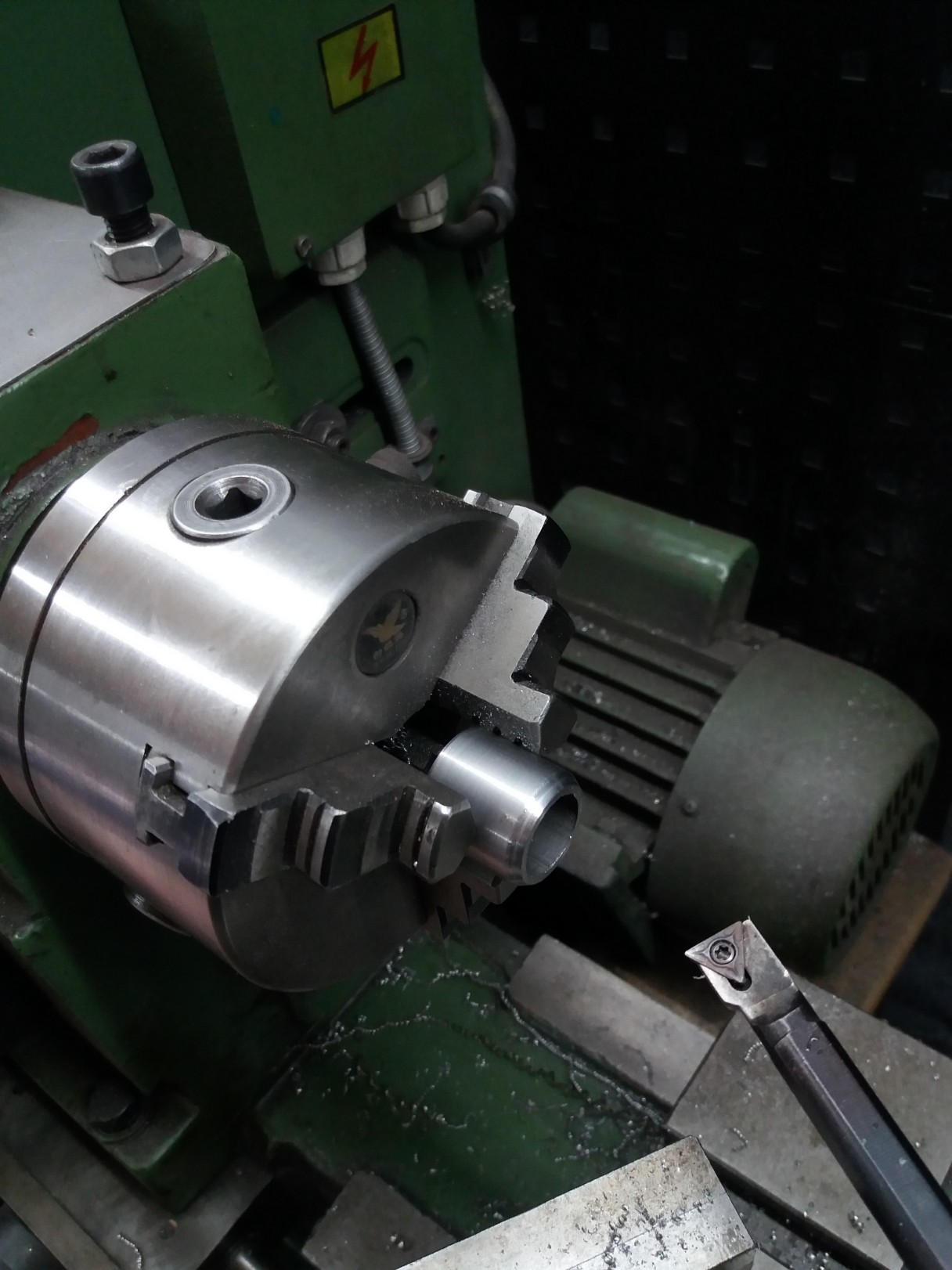

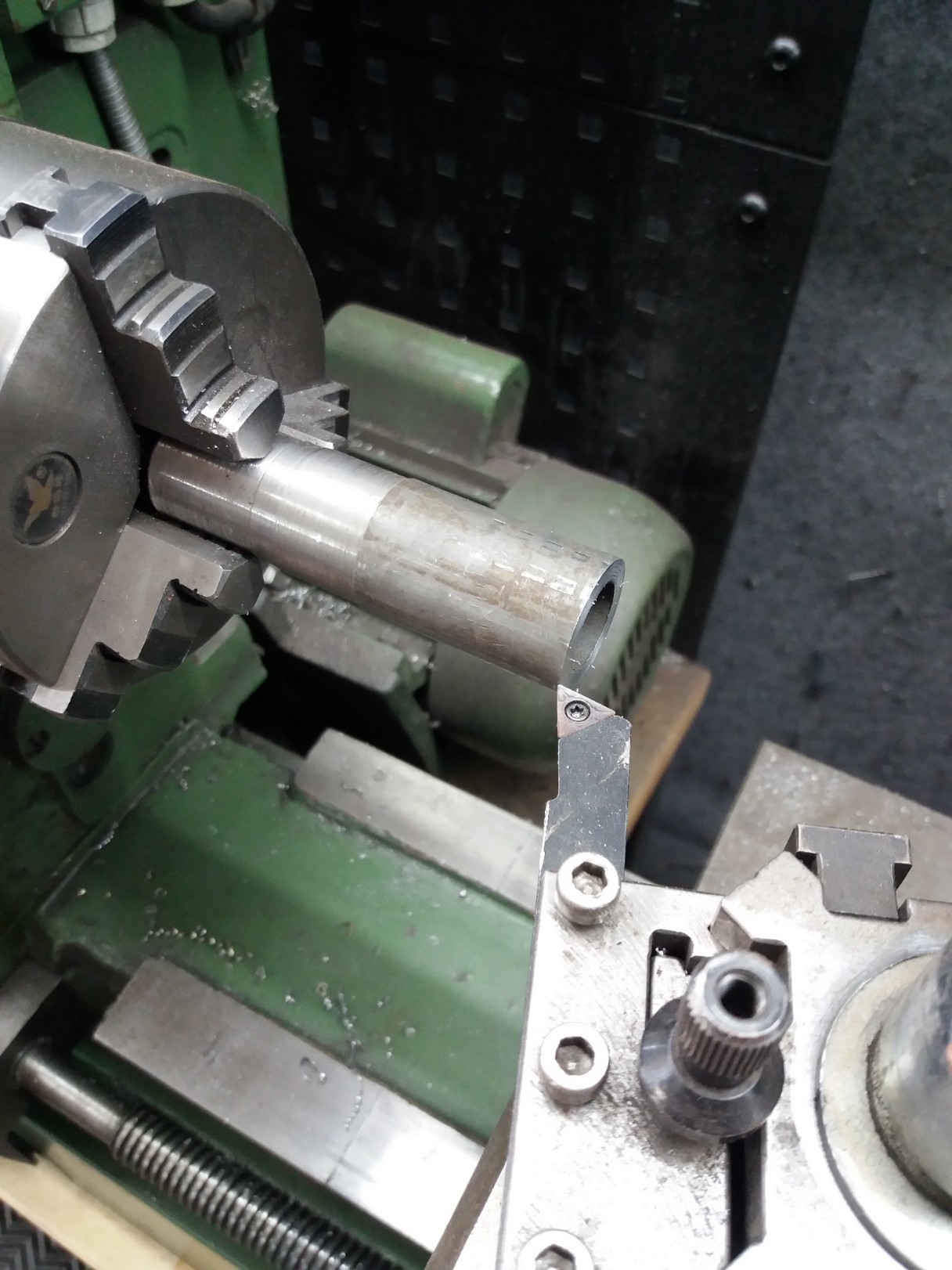

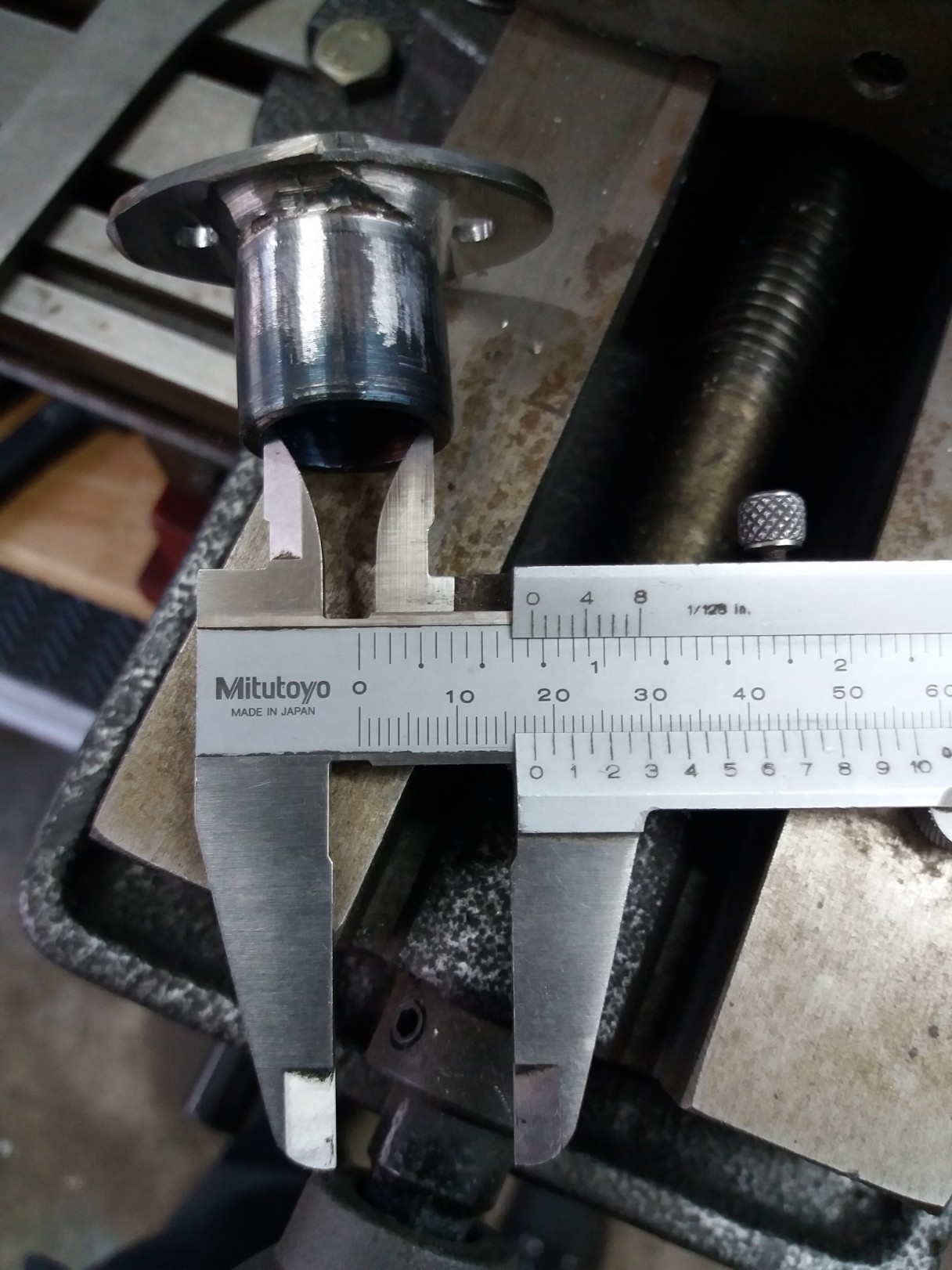

Well her i go, outside diameter

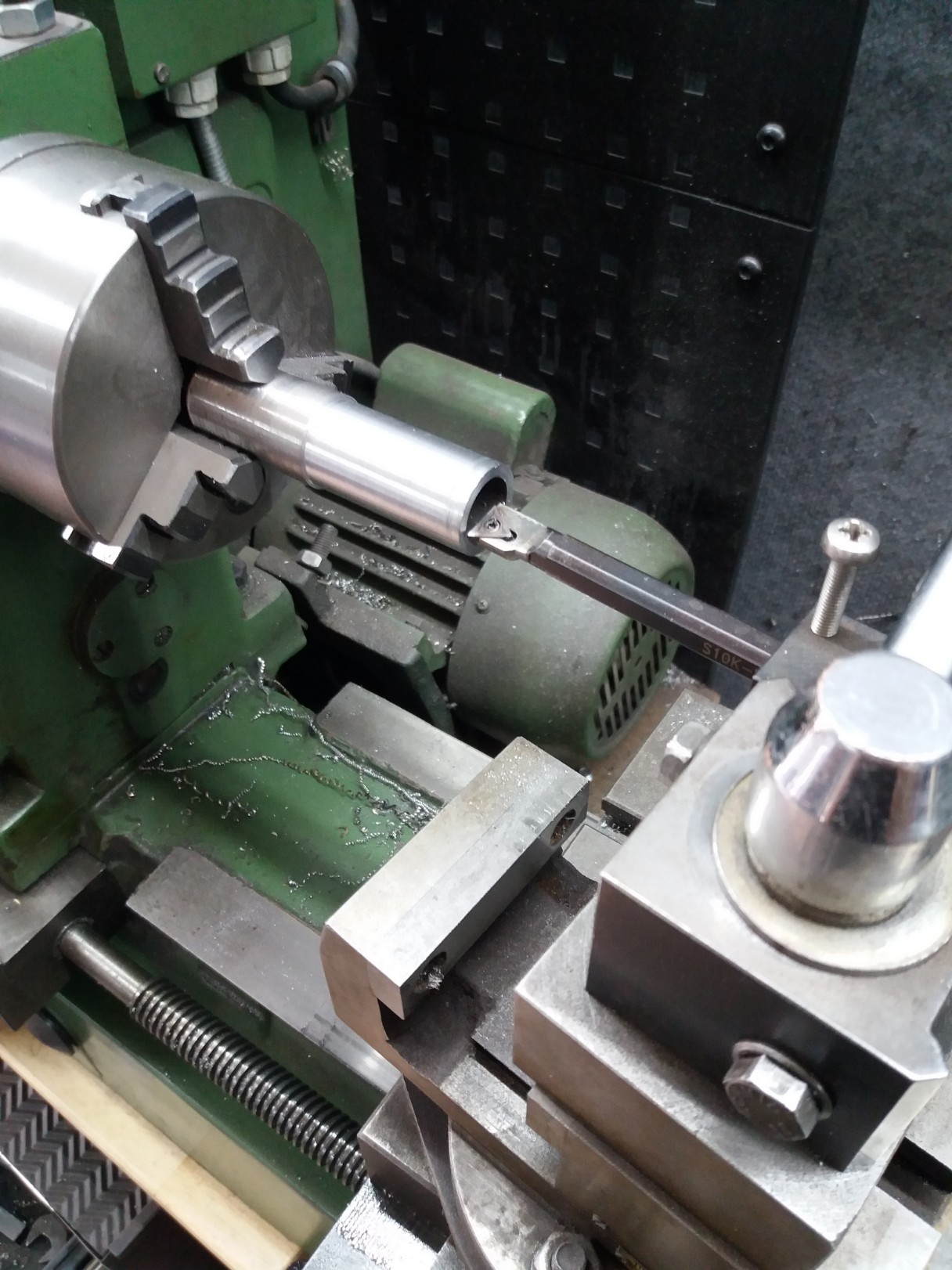

Internal diameter
Small angular, for welding it later

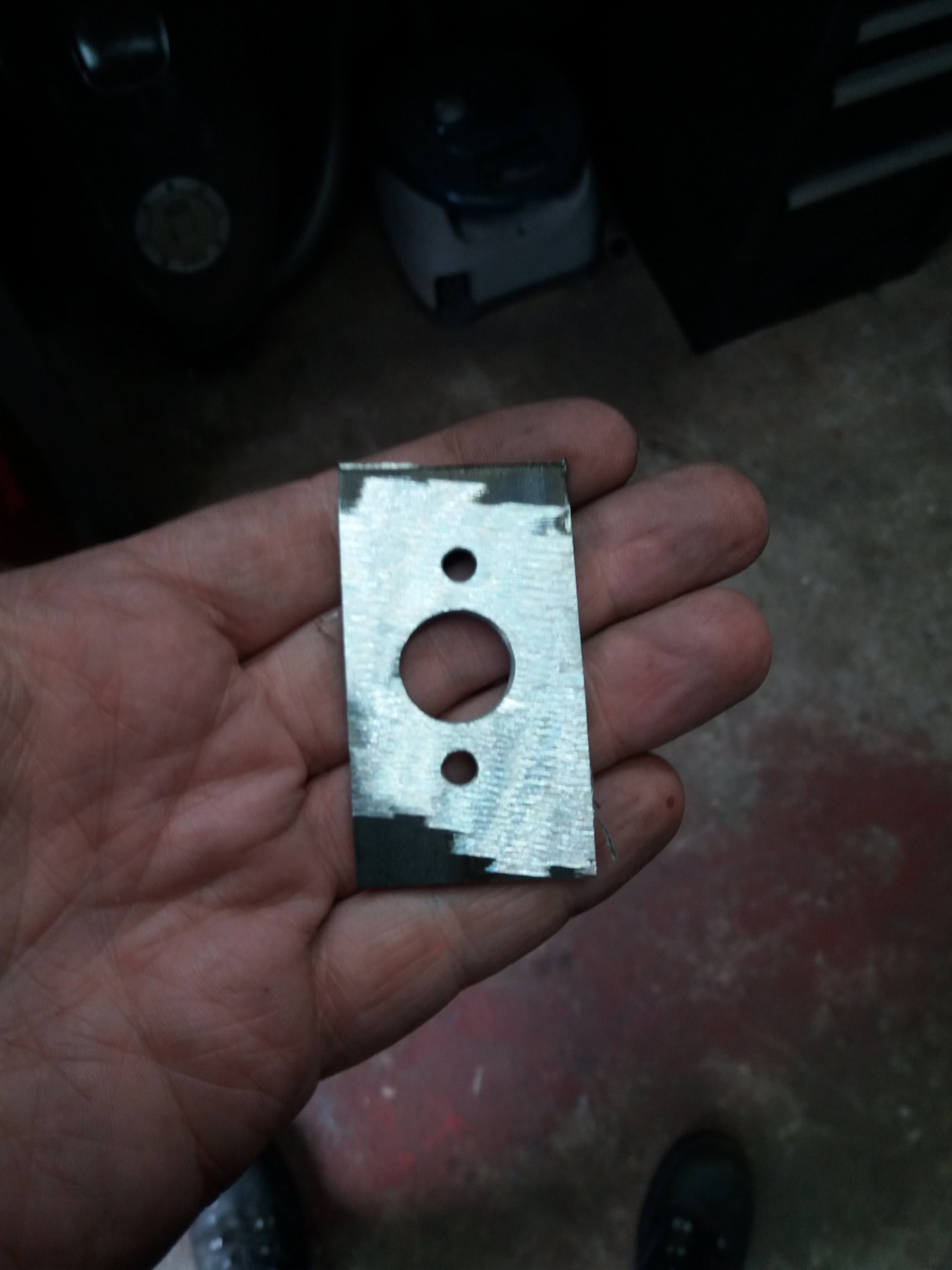

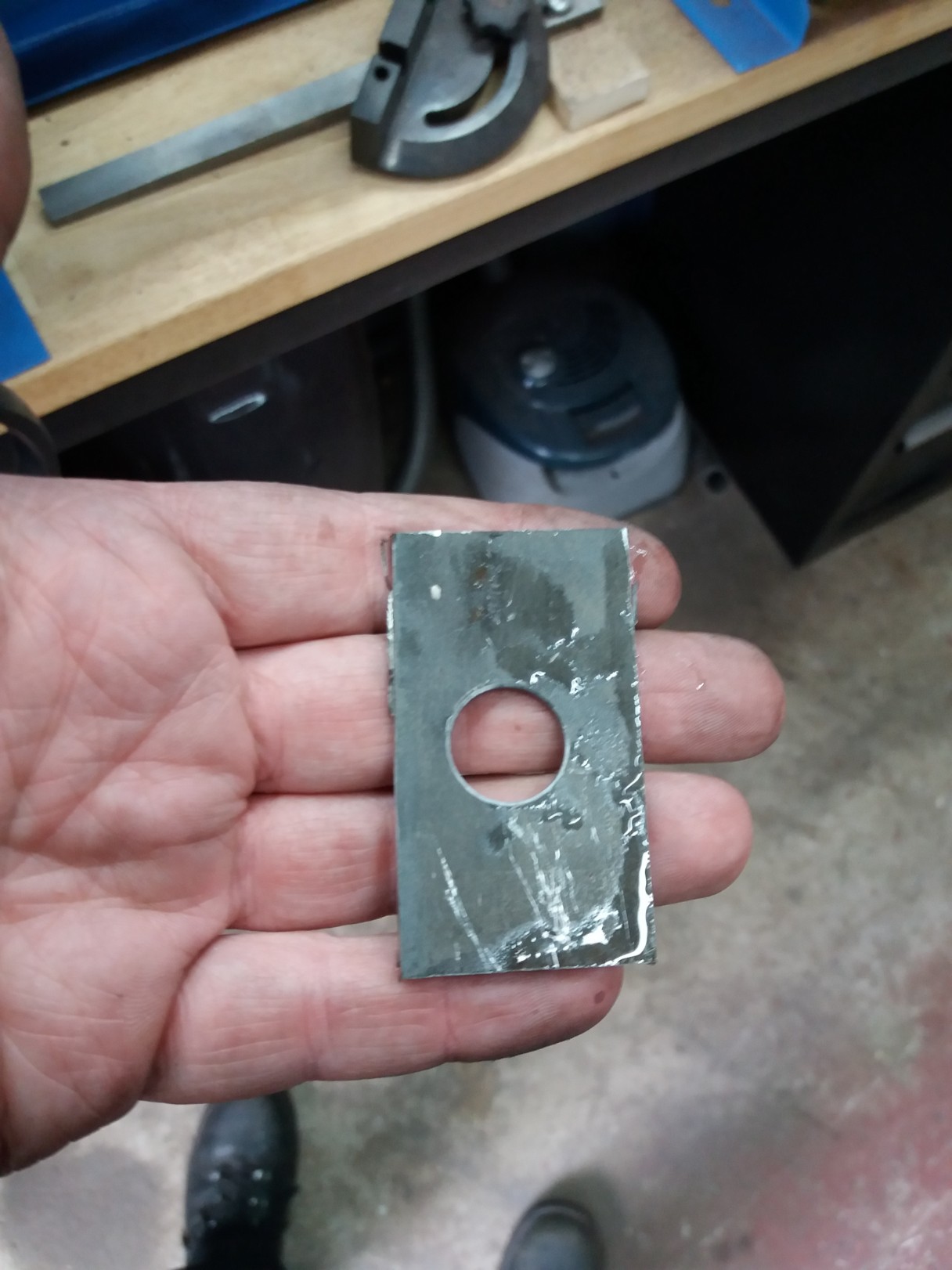

Mounting plate

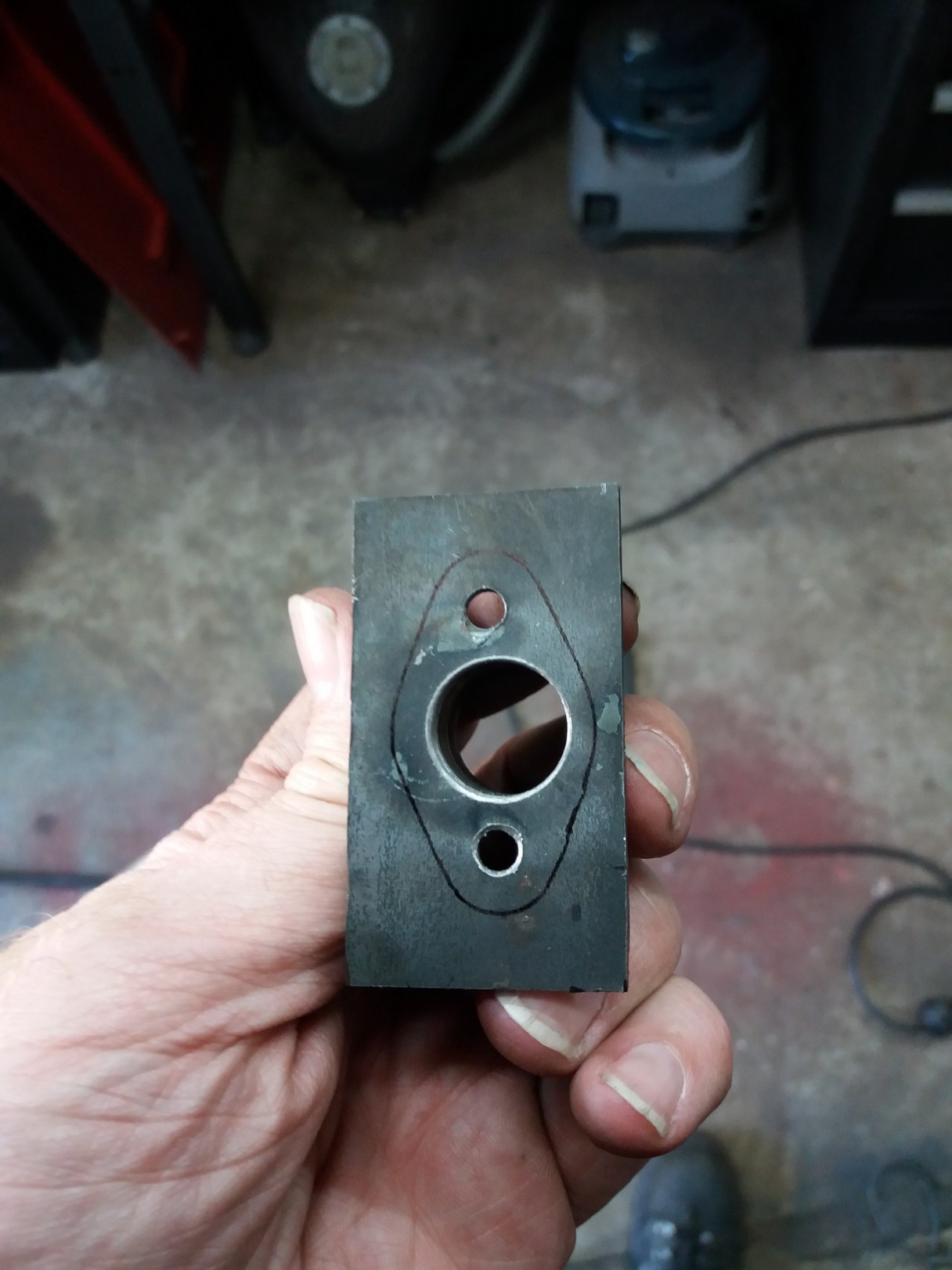

Now with mounting holes.

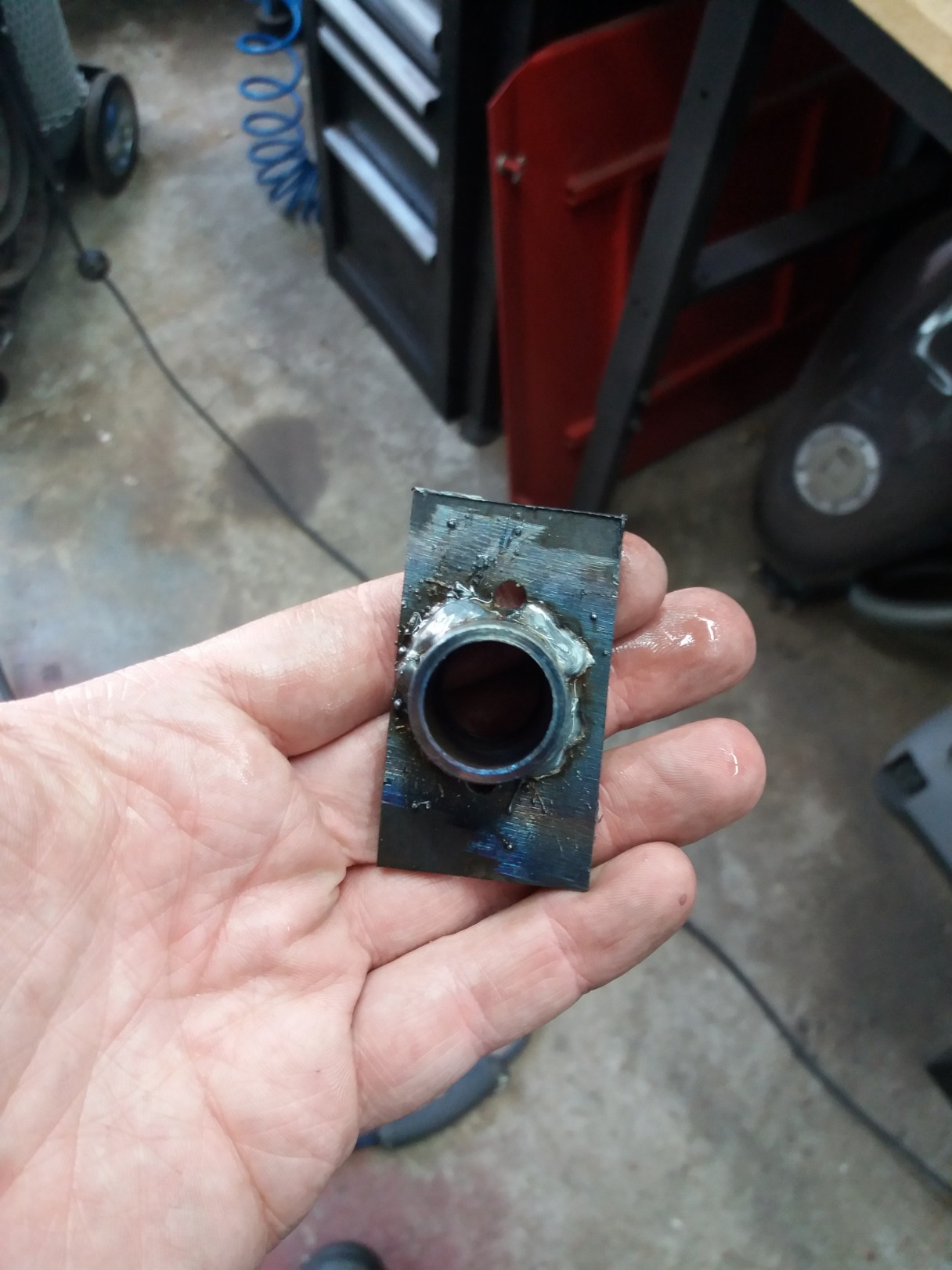

Welded.

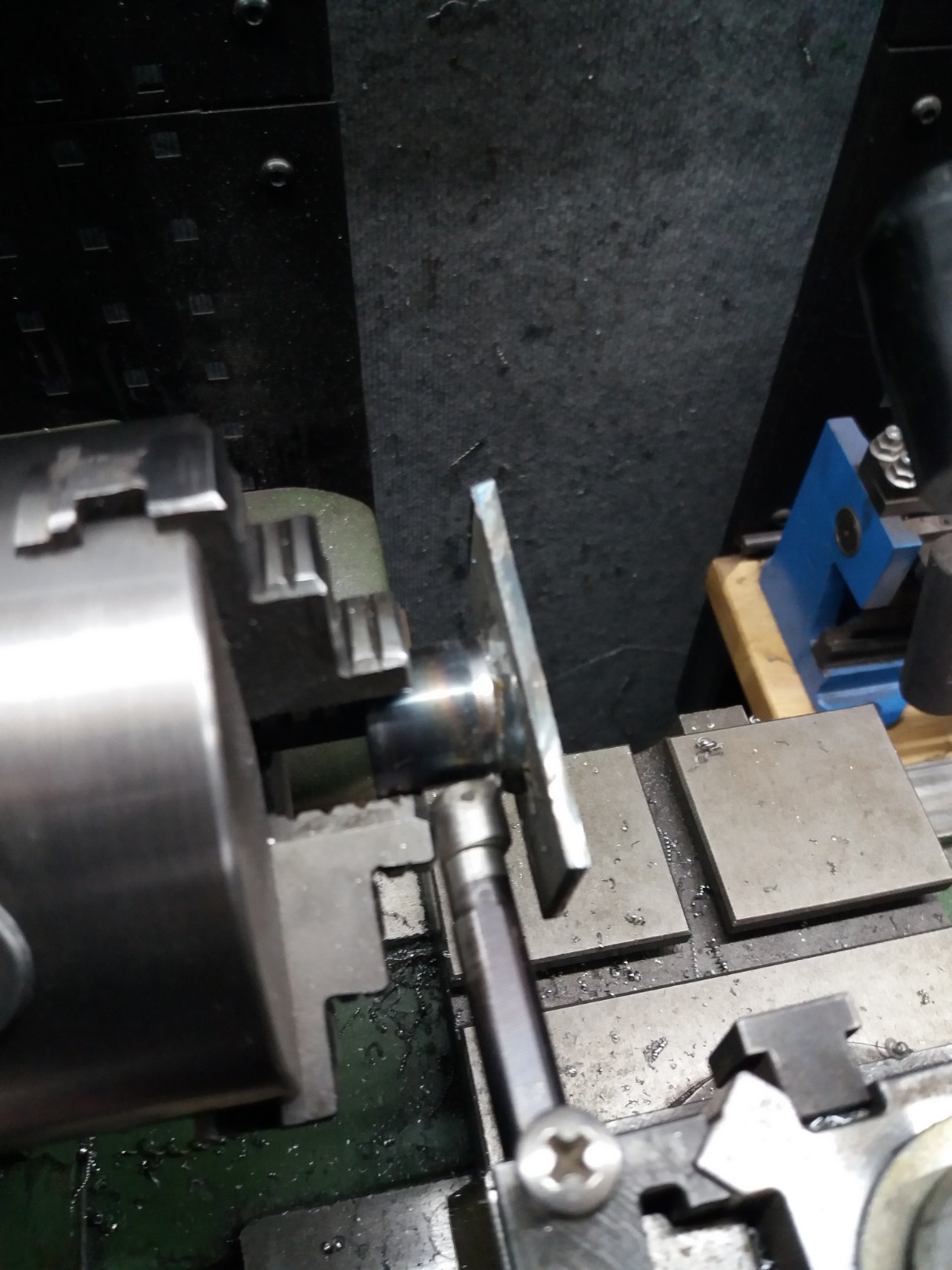

Making it smooth
Getting better

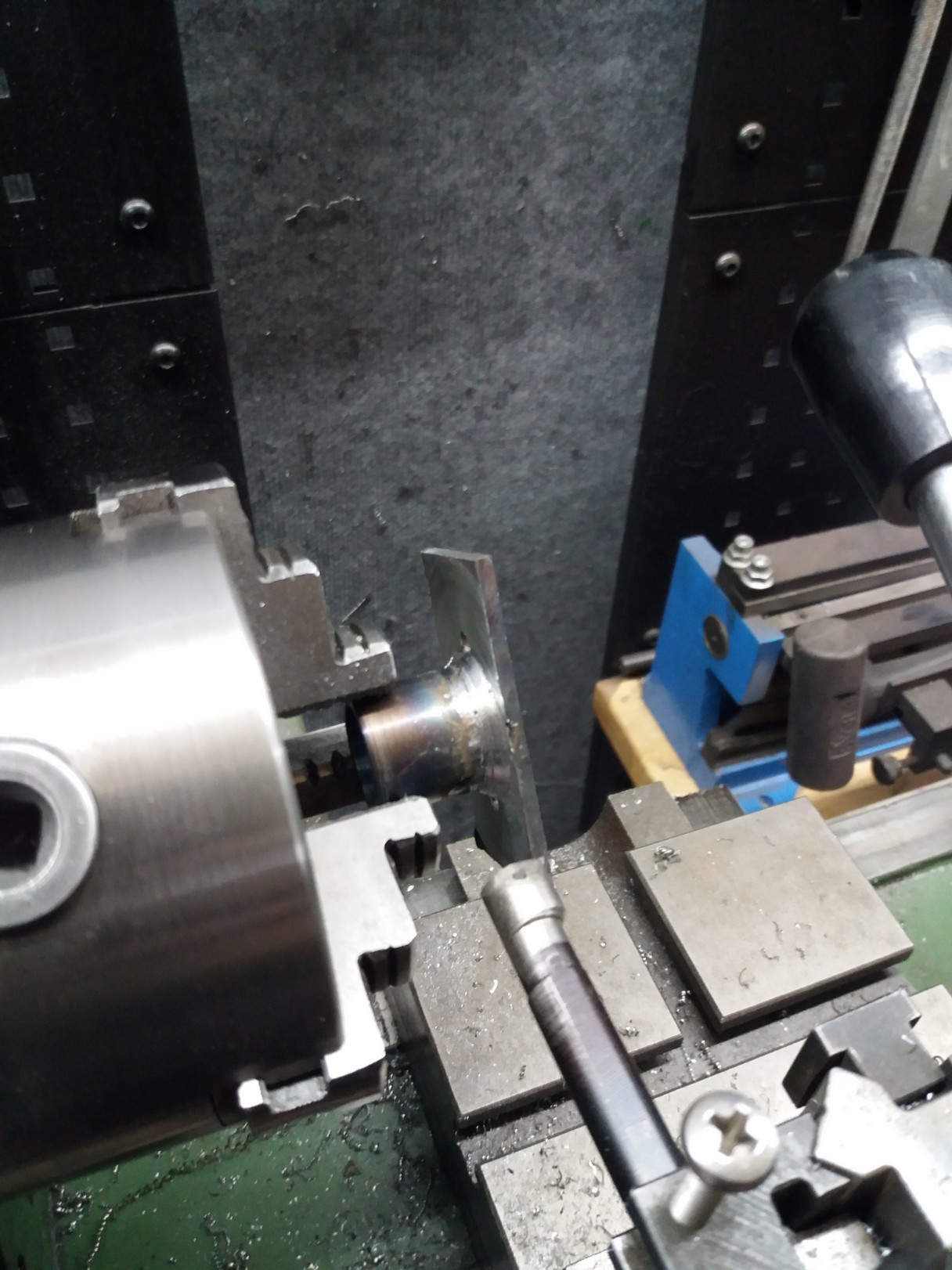

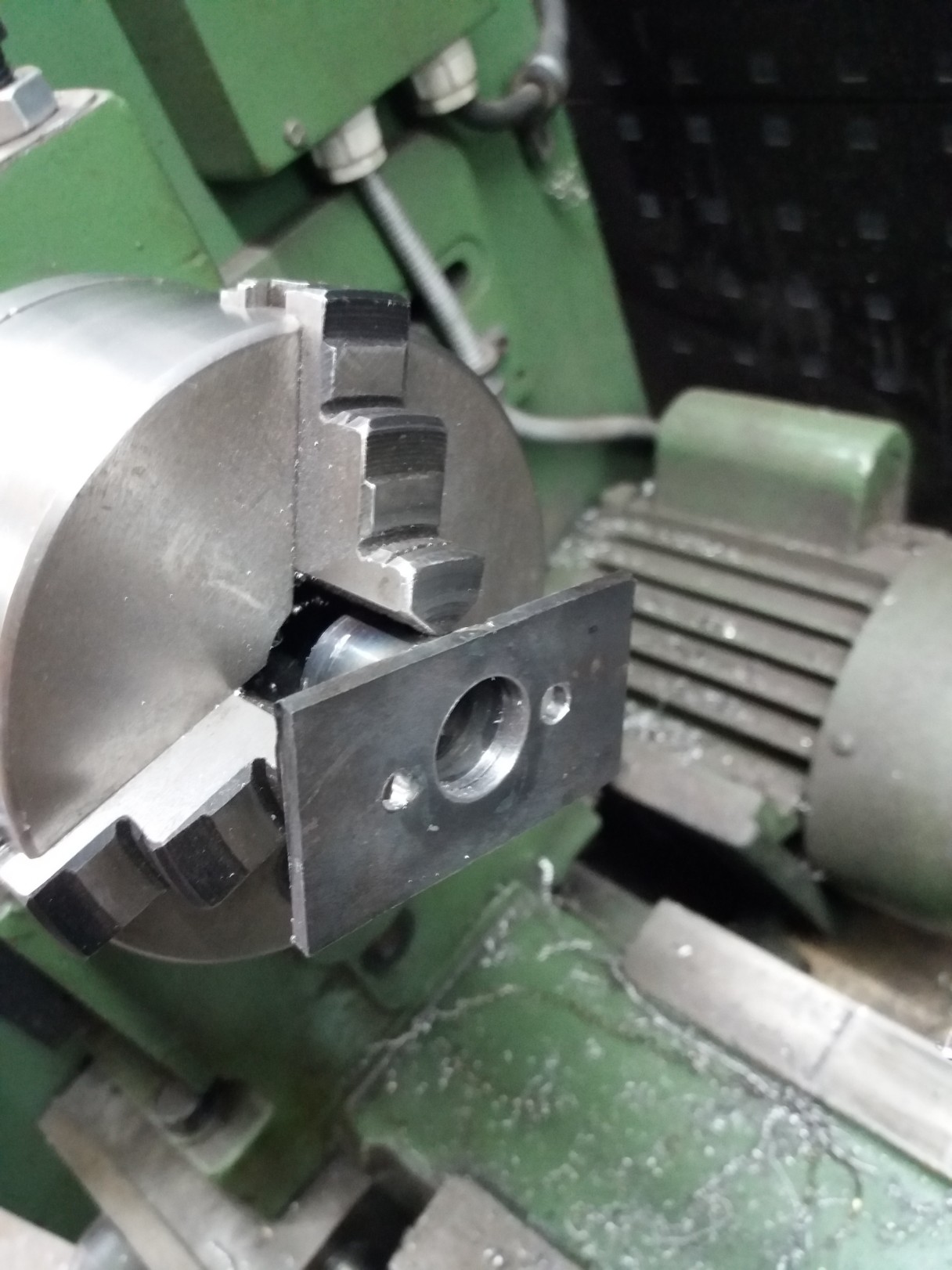

Smooth out internal diameter

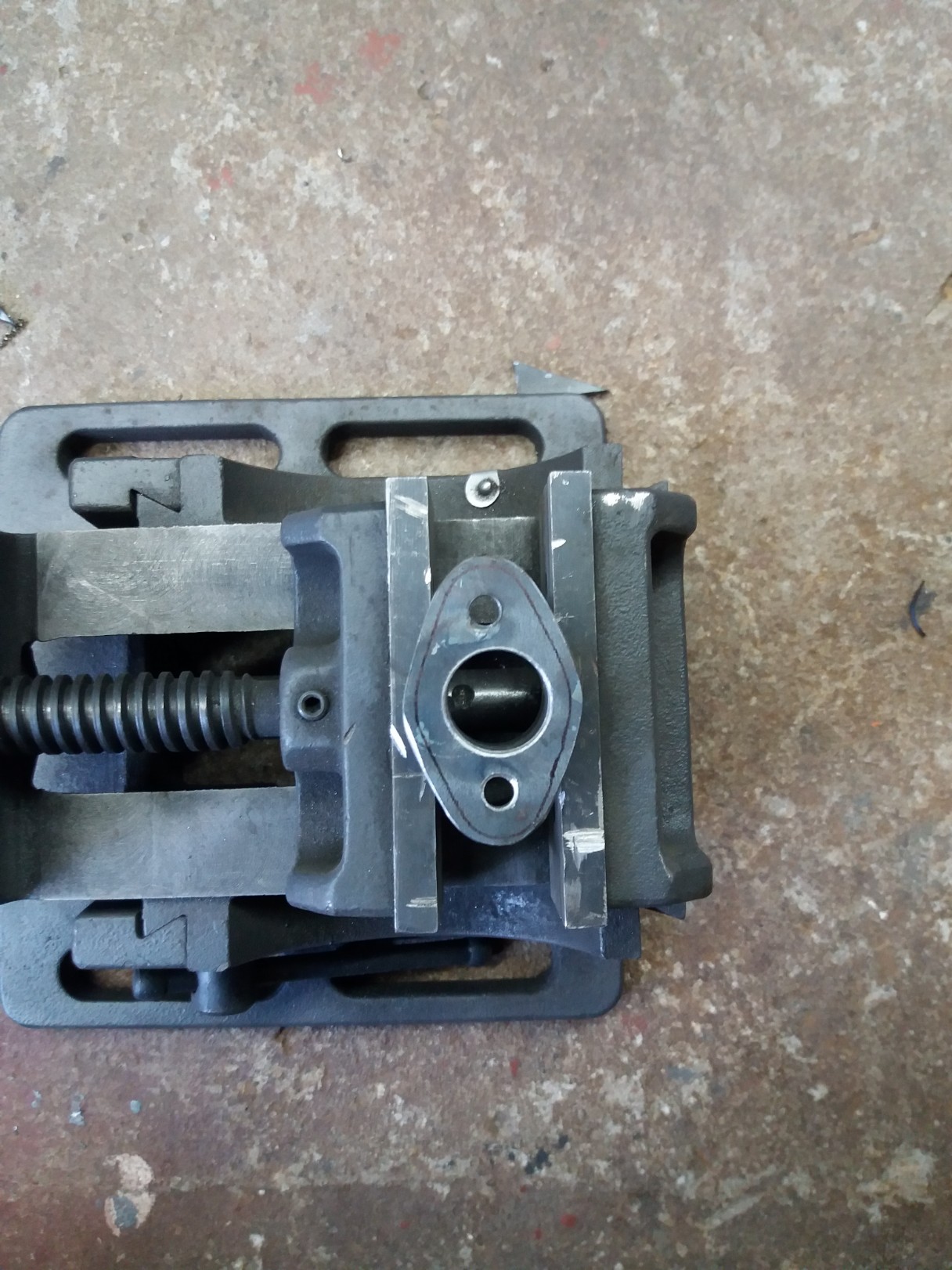

The cutting lines
Roughly

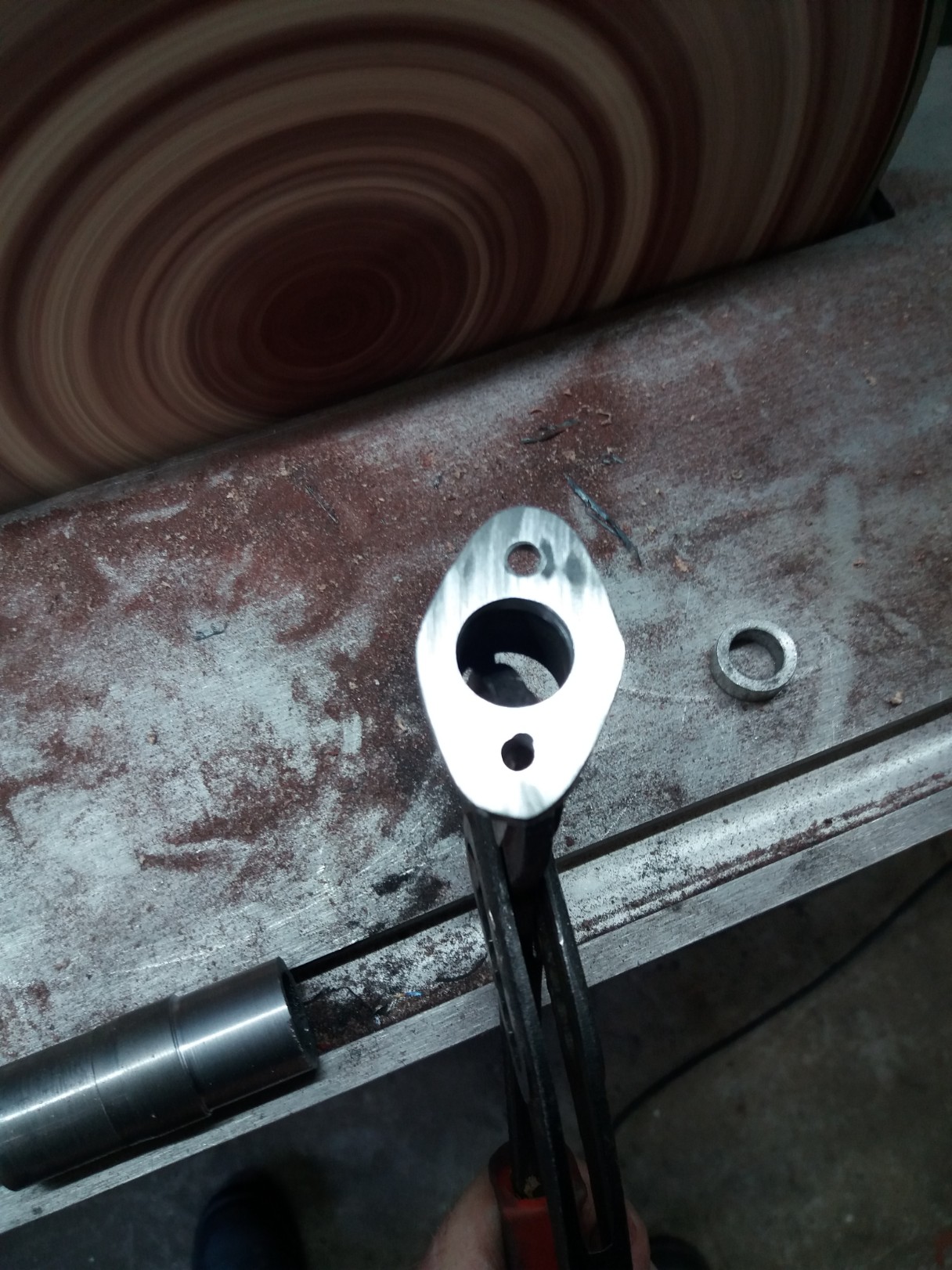

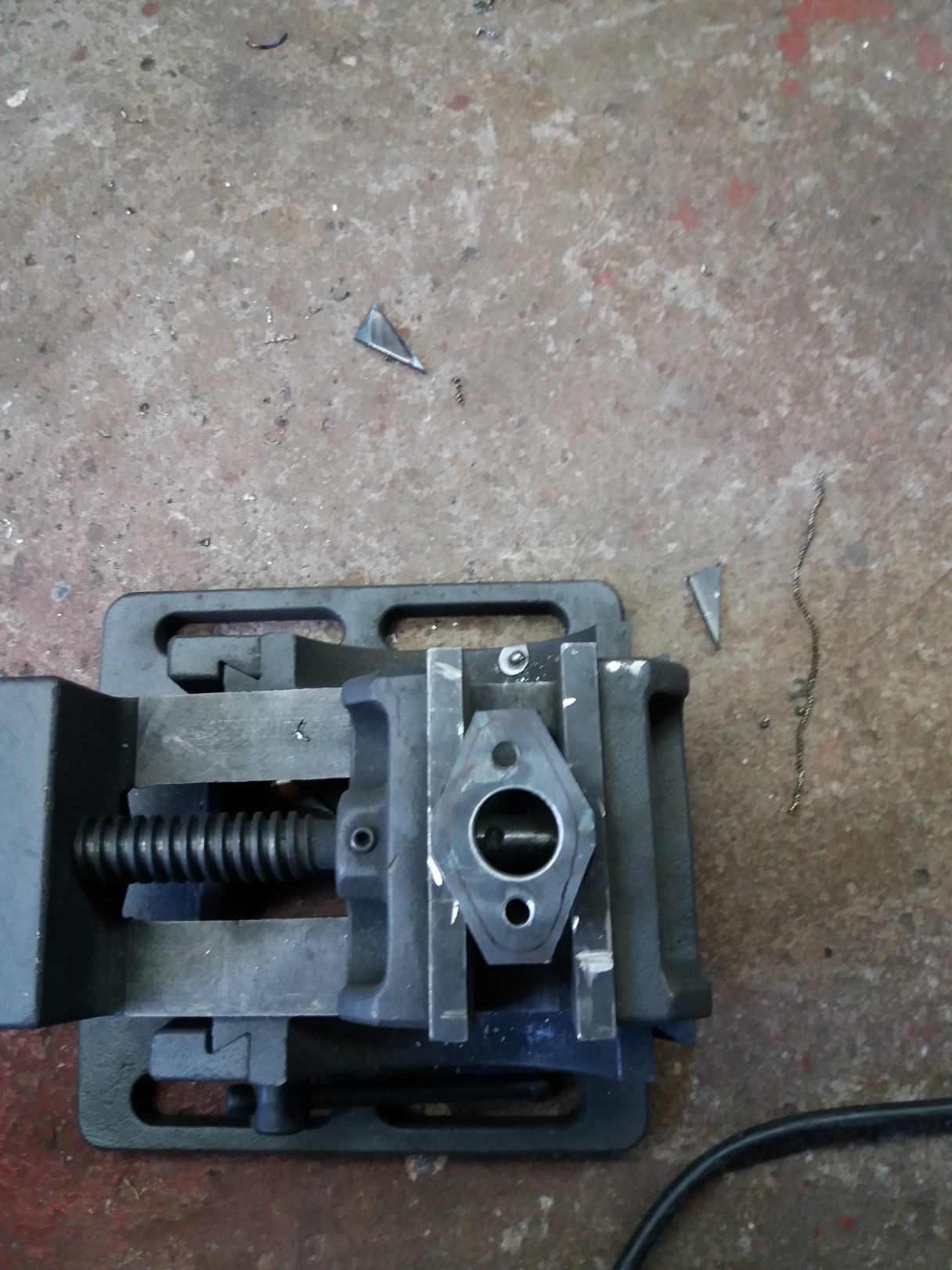

Smoothing it out.
Flatten it.

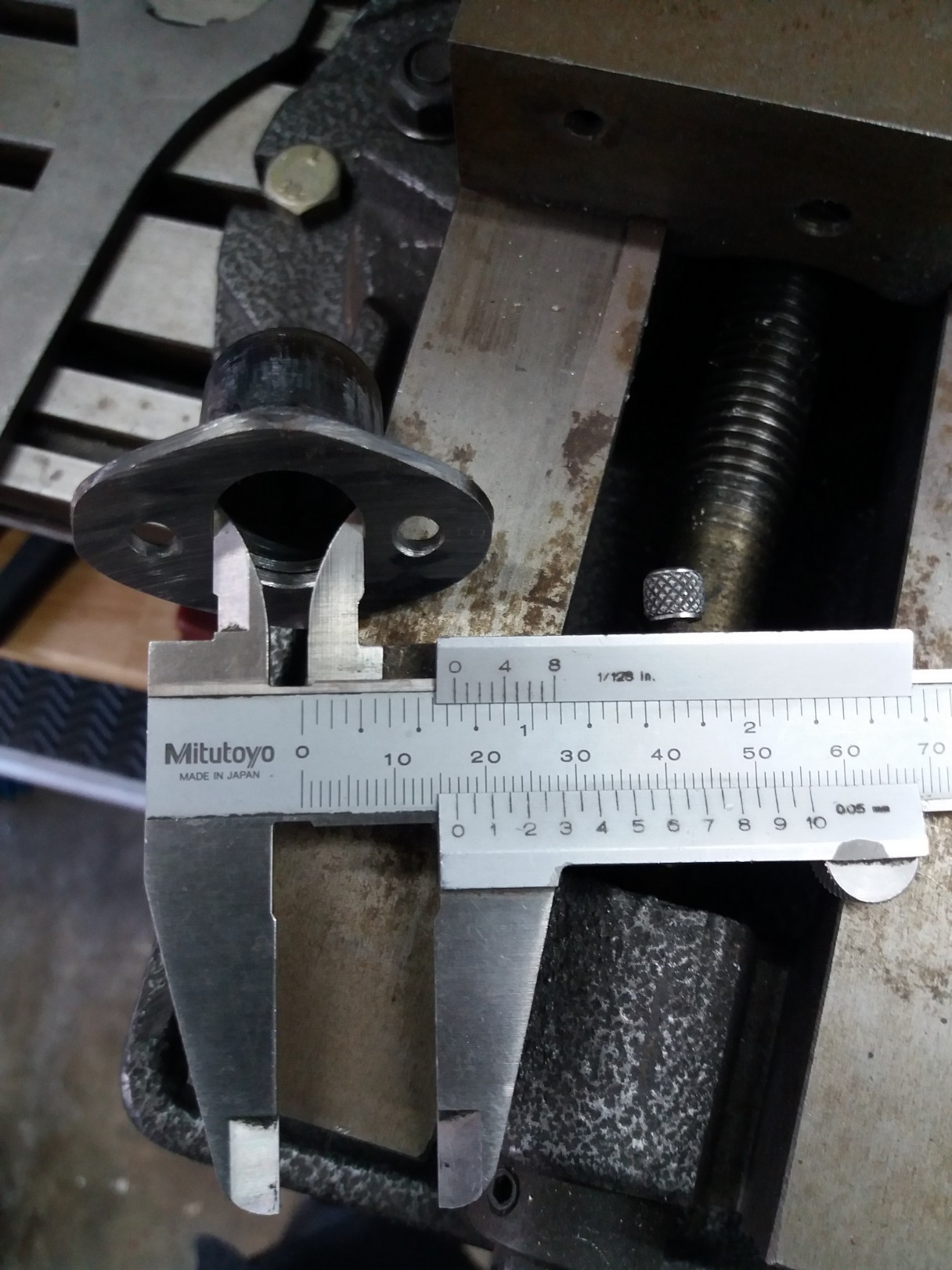

18mm one side
16,8mm other side
Reverse tapper.
Ready

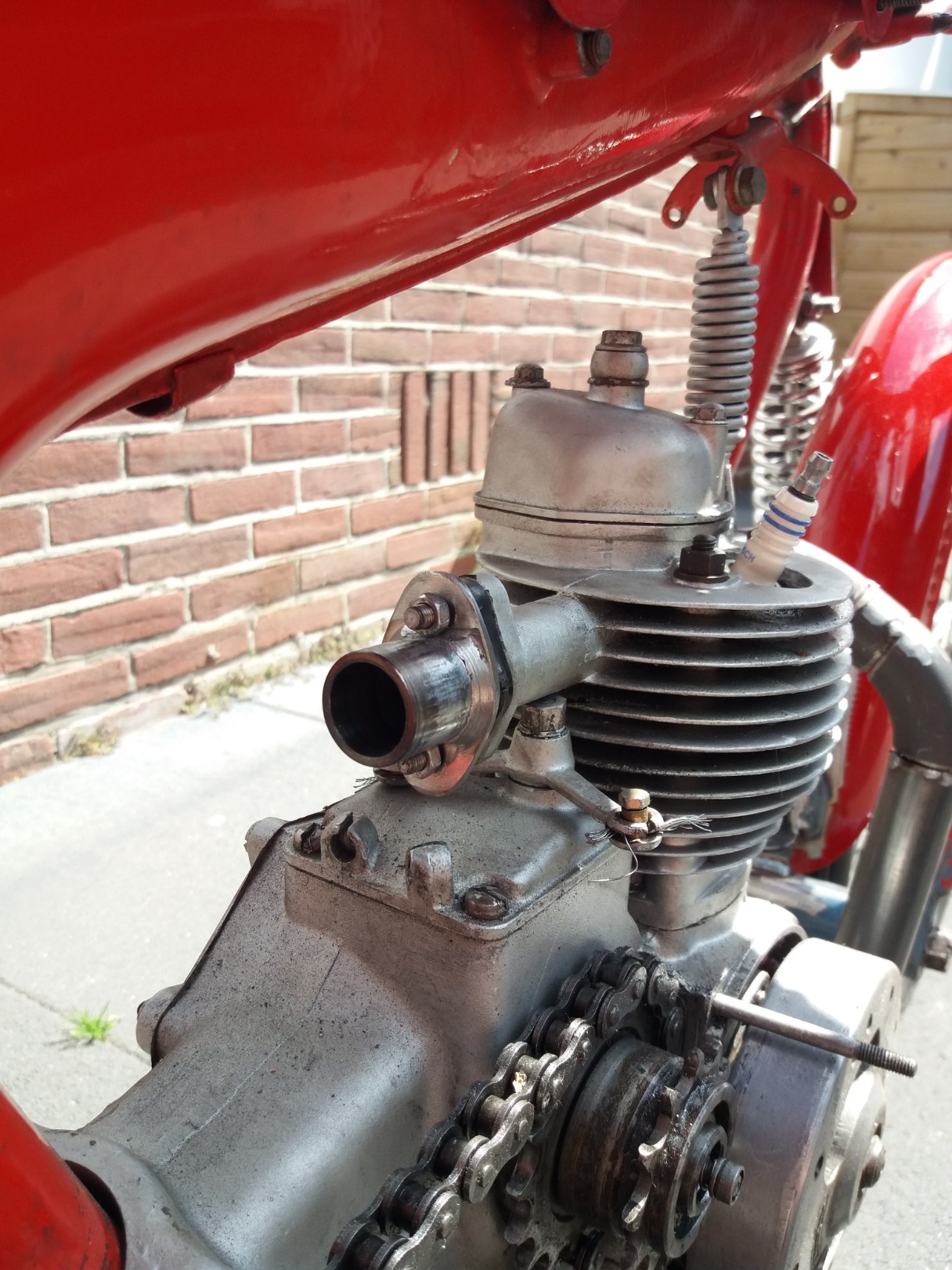

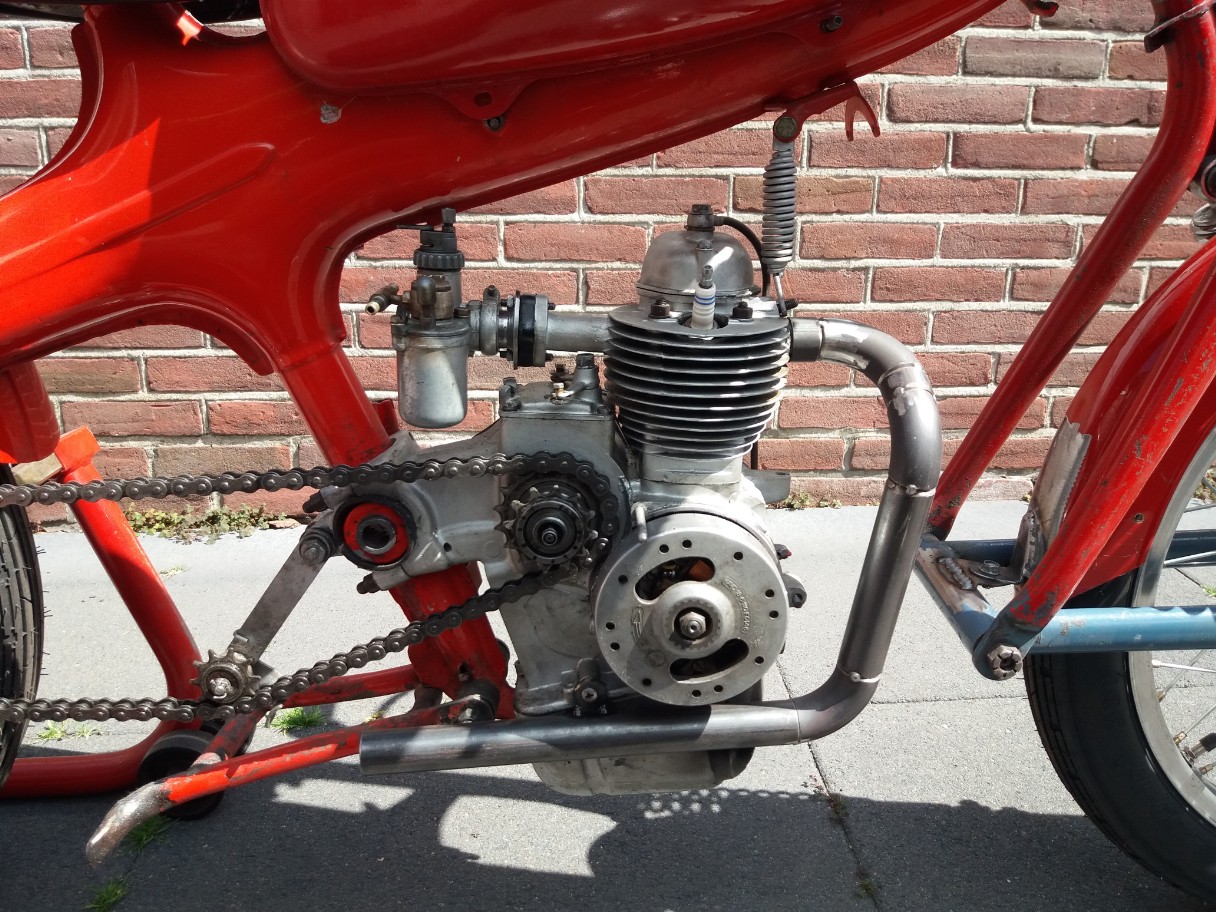

Inlet mounted
Found out it won't fit as thought.
Will need to start all over again.
